Fiber patch cords and pigtails
LC and SC patch cords in OS2 single-mode and OM3 or OM4 multimode, simplex or duplex, in the length you need. Pigtails for splicing come the same way, with one end left bare.
Options
| Option | Choices |
|---|---|
| Connectors | LC, SC or FC at each end |
| Polish | UPC or APC on single-mode, PC on multimode |
| Fiber | OS2 single-mode, or OM3 or OM4 multimode (50/125 µm) |
| Cores | Simplex or duplex |
| Length | 1, 2, 3, 5, 10 or 20 m, or any length in metres |
| Jacket | LSZH or PVC, 2.0 or 3.0 mm; 0.9 mm tight buffer for pigtails |
Listed cords
- LC/PC to LC/PC duplexOM3, 1 m or 20 mAsk price
- LC/PC to SC/PC duplexOM4, any lengthAsk price
- SC to SC simplexSingle-mode UPC or multimode PCAsk price
- LC pigtailOM3, 1 mAsk price
Any other cord can be specified in the patch cord builder.
Common specifications
Each link opens the builder with the options already set.
| Cord | Typical use | Builder |
|---|---|---|
| LC/UPC to LC/UPC duplex, OS2 | SFP ports on switches and routers to an LC panel | Open in builder |
| SC/APC to SC/APC simplex, OS2 | FTTH: OTB to ONT, and patching at splitter panels | Open in builder |
| LC/UPC to SC/UPC duplex, OS2 | SC adapter panels to LC transceivers | Open in builder |

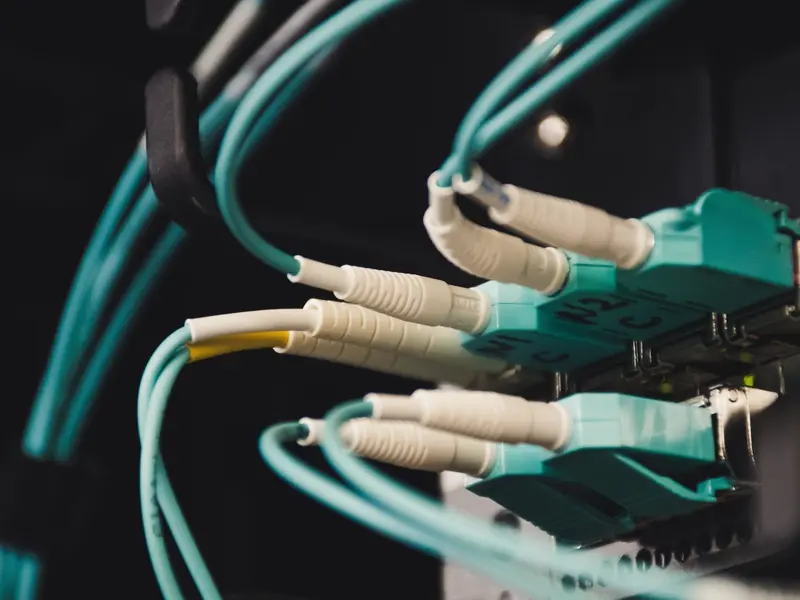

| LC/PC to LC/PC duplex, OM4 | Short runs between switches in a data centre | Open in builder |
| SC/APC pigtail, OS2, 0.9 mm | Splicing in an LIU, ODF or OTB | Open in builder |
Patch cord or pigtail?
A patch cord has a connector at both ends and links two ports, for example a switch and a patch panel. A pigtail has a connector at one end only. Its bare end is fusion-spliced to a fiber in a cable, usually inside an LIU, an ODF or an OTB, and the connector plugs into an adapter on the panel or box.
Pigtails that sit in a splice tray usually have a 0.9 mm tight buffer instead of a jacket, so they coil neatly in the tray. The panels they go into are on the LIU and FMS page.
How to order
- Choose the connector and polish for each end, to match the ports the cord plugs into.
- Choose the fiber: OS2 for single-mode links, OM3 or OM4 for multimode. The transceivers or the existing cabling decide this.
- Choose simplex or duplex, the length in metres and the jacket.
- Send the line with the quantity and delivery city on WhatsApp or through the quote form below. A photo of the port or of an old cord also works.
Common questions
What is the difference between LC and SC connectors?
LC is the small connector, with a 1.25 mm ferrule and a latch. It is used on SFP transceivers, duplex QSFP optics such as LR4, and high-density panels. SC is larger, with a 2.5 mm ferrule and a push-pull body, and is common on FTTH equipment, ODFs and older switches.
Can an APC connector be mated with a UPC connector?
No. APC end-faces are polished at 8° and UPC end-faces are not, so the fibers do not meet properly. The joint has high loss and the end-faces can be damaged. APC connectors are green and UPC connectors are blue, which makes the mistake easy to spot. More in UPC vs APC.
Should I order OS2, OM3 or OM4?
OS2 single-mode is for telecom, FTTH and long links. OM3 and OM4 multimode are for short links inside a building or data centre, matched to the multimode transceivers in use. OS2 vs OM3 vs OM4 compares them.
Can I order a non-standard length?
Yes. Choose Other in the builder and enter the length in metres.
What do the connector and jacket colours mean?
By the usual convention, single-mode jackets are yellow and OM3 and OM4 jackets are aqua. Connector bodies show the polish: blue for single-mode UPC, green for APC, and beige or aqua for multimode.
